RTD Cables & PRT Wire

Heatsense Highlight Cable
Home » Specialist Cables » RTD Cables & PRT Wire

Heatsense manufactures a range of RTD Cables & PRT Wires. We also offer bespoke solutions if you require something very specific.

RTD (Resistance Temperature Detector) cables and PRT (Platinum Resistance Thermometer) wires are essential components used in resistance-based temperature sensing systems.

Click on the datasheet links below to see our full product range or get in touch about a specific requirement you have.

RTD Cables & PRT Wire

Can't find what you need?

Folder icon  Silver Plated Copper in PFA or FEP Right Arrow Icon
Folder icon  Tin Plated Copper in PFA or FEPRight Arrow Icon
Folder icon  Glass Fibre InsulatedRight Arrow Icon

You may also be interested in

Call us Today:

+44 1706 767 070

Or Request a Callback >

Why choose Heatsense for RTD Cables and PRT Wires?

Heatsense Cables are a UK-based specialist cable manufacture who can produce a broad range of RTD Cables and PRT extension wires for use in the most challenging and extreme environments. We offer a variety of RTD and PRT extension cables available in 2, 4 or 6 core configurations and sheathed in PFA, PTFE, ETFE, FEP or Glass Fibre to suit a variety of applications.

RTD Cable FAQs

What are RTD and PRT Cables?

Resistance Temperature Detectors (RTDs) and Platinum Resistance Detectors (PRTs) offer an alternative measurement technology to thermocouples and are generally used at extreme temperatures. RTDs are used because of their simpler operation, increased stability and sensitivity although they have an increased response time. PRTs measure temperature by determining the electrical resistance of a piece of pure platinum wire.

PRT Cable Options

Heatsense supplies 7/0.2mm diameter copper stranded conductors that can be provided stranded, screened or unscreened for use with PRT sensors. Available in 2, 4 or 6 core configurations and sheathed in PFA, PTFE, ETFE, FEP or Glass Fibre to suit a variety of applications.

  • Red or White inner insulation
  • PVC and PVC screened insulation rating -10°C ~ +105°C
  • PFA and PFA screened and PTFE and PFA screened insulation rating -75°C ~ +260°C
  • Available incorporating tin-plated copper, stainless steel- or nickel-plated over-braid
  • Available in a variety of lengths

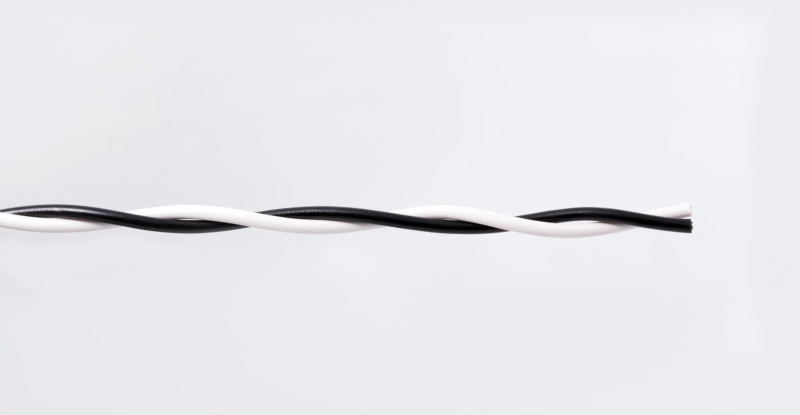

PRT Twisted Pairs

Heatsense supplies 7/0.2mm diameter copper stranded conductors. Two or four cores are supplied and insulated in PFA. The cores are then twisted and over-sheathed in a PFA jacket.

  • Copper stranded conductors
  • PFA insulated
  • Red or White Colour Code
  • Insulation rating -75°C ~ +260°C
  • Available in a variety of lengths
Cable Types Available
  • Silver Plated Copper FEP
  • Silver Plated Copper PFA
  • Silver Plated Copper PTFE
  • Silver Plated Copper Glass Fibre
  • Tinned Plated Copper FEP
  • Tinned Plated Copper PFA
  • Tinned Plated Copper Glass Fibre
  • Tinned Plated Copper PVC
